ControlLogix Control System

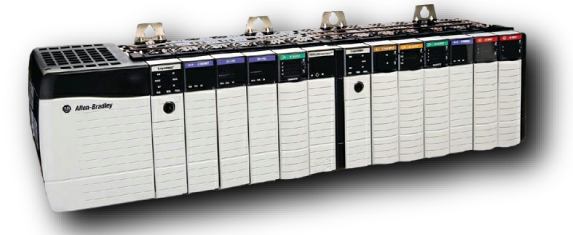

The ControlLogix system

Model
Description
 1756-L61    1756-L62    1756-L63    1756-L64    1756-L65
 User memory    2 MB    4 MB    8 MB    16 MB    32 MB
 I/O memory    478 KB
 Optional nonvolatile memory storage    64 MB (cat. no. 1784-CF64)
 128 MB (cat. no. 1784-CF128)

 Digital I/O, max    128,000
 Analog I/O, max    4000
 Total I/O, max    128,000
 Replacement battery(1)    Series A: 1756-BA1,
1756-BATM, 1756-BATA
 Series A: 1756-BA1, 1756-BATM, 1756-BATA    Series A: 1756-BA1, 1756-BATM, 1756-BATA
   Series B: 1756-BA2    Series B: 1756-BA2    Series B: 1756-BA2    1756-BA2

Model
Description
 1756-L72    1756-L73    1756-L74    1756-L75
 User memory    4 MB    8 MB    16 MB    32 MB
 I/O memory    0.98 MB
 Optional nonvolatile memory storage    1 GB (cat. no. 1784-SD1)
2 GB (cat. no. 1784-SD2)

 Digital I/O, max    128,000
 Analog I/O, max    4000
 Total I/O, max    128,000

1784 Memory Cards


Model Description
 1784-CF64   64 MB  ( 1756-L6x  )
 1784-CF128   128 MB  ( 1756-L7x  )
 1784-SD1    1 GB
 1784-SD2    2 GB

Expansion I/O


Model Description  Removable Terminal Block
1756-IA8D 8 diagnostic inputs (4 points/group) 120V AC 1756-TBNH
1756-TBSH
1756-IA16 16 inputs (8 points/group) 120V AC 1756-TBNH
1756-TBSH
1756-IA16I 16 individually isolated inputs 120V AC 1756-TBCH
1756-TBS6H
1756-IA32 32 diagnostic inputs (4 points/group)  120V AC 1756-TBCH
1756-TBS6H
1756-IM16I 16 individually isolated inputs  240V AC 1756-TBCH
1756-TBS6H
1756-IN16 16 inputs (8 points/group)  24V AC 1756-TBNH
1756-TBSH
1756-OA8 8 outputs (4 points/group)  120/240V AC 1756-TBNH
1756-TBSH
1756-OA8D 8 diagnostic, electronically fused outputs (4 points/group)  120V AC 1756-TBNH
1756-TBSH
1756-OA8E 8 electronically fused outputs (4 points/group)  120V AC 1756-TBNH
1756-TBSH
1756-OA16 16 mechanically fused/group outputs (8 points/group) 1756-TBNH
120/240V AC 1756-TBSH
1756-OA16I 16 individually isolated outputs 1756-TBCH
120/240V AC 1756-TBS6H
1756-ON8 8 outputs (4 points/group) 1756-TBNH
24V AC 1756-TBSH
 1756-IB16ISOE    16 individually isolated, sequence     1756-TBCH 1756-TBS6H
  of events inputs  24/48V DC sink/source
 1756-IC16    16 inputs (8 points/group)  48V DC sink    1756-TBNH 1756-TBSH
 1756-IG16    16 inputs (8 points/group)  5V DC TTL source (Low=True)    1756-TBNH 1756-TBSH
 1756-IH16I    16 individually isolated inputs  125V DC sink/source  1756-TBCH 1756-TBS6H
 1756-IH16ISOE    16 individually isolated, sequence of events inputs    1756-TBCH 1756-TBS6H
 1756-IV16    16 inputs (8 points/group)   12/24V DC source    1756-TBNH 1756-TBSH
 1756-IV32    32 inputs (16 points/group)   12/24V DC source   1756-TBCH 1756-TBS6H
 1756-OB8    8 outputs  12/24V DC source    1756-TBCH 1756-TBS6H
 1756-OB8EI    8 electronically fused, individually isolated outputs    1756-TBCH 1756-TBS6H
 1756-OB8I    8 individually isolated outputs  12/24V DC source   1756-TBCH 1756-TBS6H
 1756-OB16D    16 diagnostic outputs (8 points/group)   24V DC source    1756-TBCH 1756-TBS6H
 1756-OB16E    16 electronically fused outputs (8 points/group)12/24V DC source  1756-TBNH 1756-TBSH
 1756-OB16I    16 individually isolated outputs  12/24V DC sink/source    1756-TBCH 1756-TBS6H
 1756-OB16IS    16 individually isolated outputs 8 scheduled outputs    1756-TBCH 1756-TBS6H
 1756-OB32    32 outputs (16 points/group)  12/24V DC source    1756-TBCH 1756-TBS6H
 1756-OC8    8 outputs (4 points/group)   48V DC source    1756-TBNH 1756-TBSH
 1756-OG16    16 (8 points/group)   5V DC TTL source (Low=True)   1756-TBNH 1756-TBSH
 1756-OH8I    8 outputs individually isolated  120V DC    1756-TBCH 1756-TBS6H
 1756-OV16E    16 electronically fused outputs (8 points/group)   12/24V DC sink    1756-TBNH 1756-TBSH
 1756-OV32E    32 electronically fused outputs (16 points/group)  12/24V DC sink   1756-TBCH 1756-TBS6H
 1756-IF6CIS    6 individually isolated inputs, current sourcing  0…21 mA   1756-TBNH 1756-TBSH
 1756-IF6I    6 individually isolated inputs  ±10.5V 0…10.5V 0…5.25V 0…21 mA    1756-TBNH 1756-TBSH
 1756-IF8    8 single-ended inputs 4 differential inputs 2 high-speed differential inputs    1756-TBCH 1756-TBS6H
 1756-IF8H    8 differential voltage or current inputs, HART interface    1756-TBCH 1756-TBS6H
 1756-IF16    16 single-ended inputs 8 differential or 4 differential (high speed)   1756-TBNH 1756-TBSH
 1756-OF4    4 voltage or current outputs    1756-TBNH
   ±10.4V    1756-TBSH
   0…21 mA

 1756-OF6CI    6 individually isolated outputs,   0…21 mA    1756-TBNH
   current    1756-TBSH
 1756-OF6VI    6 individually isolated outputs,  ± 10.5V    1756-TBNH
   voltage    1756-TBSH
 1756-OF8    8 voltage or current outputs   ± 10.4V   0…21 mA    1756-TBNH
     1756-TBSH
 1756-OF8H    8 voltage or current outputs,  ±10.4V    1756-TBNH
   HART interface   0…20 mA    4…20 mA  1756-TBSH

Specialty I/O

Specialty I/O Modules

Model Description Removable Terminal Block
1756-CFM 4 inputs (2 per channel) Configurable flow meter module 1756-TBNH
  2 outputs, current sourcing  2 Flowmeter (F) inputs used for all modes 1756-TBSH
  2 Gate inputs used in Totalizer mode for  prover/store count
1756-HSC 2 counters, each with 3 inputs (A, B, Z for gate/reset) 1756-TBCH
  4 outputs (2 points/group) 1756-TBS6H

1756-PLS Left section: 2 groups of 4 outputs and 4 inputs each Requires 3 RTBs:
Center section: resolver interface and I/O control 1756-TBNH or
Right section: 2 groups of 4 outputs and 4 inputs each 1756-TBSH

Communication Modules


EtherNet/IP Communication Modules



1756-EN2F EtherNet/IP communication bridge module
1756-EN2T EtherNet/IP communication bridge module
1756-EN2TR 2-port EtherNet/IP communication bridge module, with embedded switch technology
1756-EN3TR 2-port EtherNet/IP communication bridge module, with embedded switch technology
1756-ENBT EtherNet/IP communication bridge module
1756-EWEB EtherNet web server module
1756-EN2TXT ControlLogix-XT, EtherNet/IP communication bridge module
Accessories—Ethernet Network
1585J-M8PBJM-x Ethernet RJ45 patchcord
x = 2 (2 m), 5 (5 m) or 10 (10 m)
1585J-M8CC-H RJ45 insulation displacement connector (IDC)
1585J-M8CC-C RJ45 crimp connector with boot, qty = 50 pieces
1585A-Jcrimp Crimp tool
9300-RADES Remote access dial-in kit
  56 Kbps modem connection to devices on an Ethernet network, includes:


ControlNet Network



1756-CN2 ControlNet communication bridge module, standard media
1756-CN2R ControlNet communication bridge module, redundant media
1756-CNB ControlNet communication bridge module, standard media
1756-CNBR ControlNet communication bridge module, redundant media
1756-CN2RXT ControlLogix-XT, ControlNet communication bridge module, redundant media
Accessories - ControlNet Network
1786-TPR T-tap right angle
1786-TPS T-tap straight
1786-TPYR Y-tap right angle
1786-TPYS Y-tap straight
Cables
1786-CP Programming cable to ControlNet RJ45 port
1786-RG6 ControlNet network, shield high flex cable
1756-RG6F ControlNet network, quad shield high flex coax cable
Other
1786-XT ControlNet termination resistor
Repeaters
1786-RPA ControlNet modular repeater adapter
1786-RPCD ControlNet coaxial hub repeater
1786-RPFRL ControlNet fiber ring repeater, long
1786-RPFRXL ControlNet fiber ring repeater, extra long
1786-RPFS ControlNet fiber ring repeater, short
1786-RPFM ControlNet fiber ring repeater, medium


DeviceNet Network


1756-DNB DeviceNet communication bridge module
125 Kbps (500 m max)
250 Kbps (250 m max)
500 Kbps (100 m max)


Data Highway Plus and Remote I/O Networks



Model Description
1756-DHRIO Data Highway Plus/Remote I/O communication module
1756-RIO Remote I/O communication module
1756-DHRIOXT ControlLogix-XT, Data Highway Plus/Remote I/O communication module
DH-485 Communication Module
1756-DH485 DH-485 communication bridge module


Power Supplies



Model Description
1756-PA72 ControlLogix standard power supply 120V/220V AC
1756-PB72 24V DC
1756-PA75 120V/220V AC
1756-PB75 24V DC
1756-PC75 48V DC
1756-PH75 125V DC



ControlLogix Chassis Overview



Model Description
1756-A4 ControlLogix standard chassis  Slots 4
1756-A7 Slots 7
1756-A10 Slots 10
1756-A13 Slots 13
1756-A17 Slots 17

Accessories—I/O Modules





Model Description
1756-TBNH 20-position NEMA screw-clamp RTB
1756-TBSH 20-pin spring-clamp RTB with standard housing
1756-TBCH 36-pin cage-clamp RTB with standard housing
1756-TBS6H 36-pin spring-clamp RTB with standard housing

Ordering
CPU
 1756-L61    2 MB  I/O memory 478 KB Digital I/O, max 128,000
 1756-L62    4 MB   I/O memory 478 KB Digital I/O, max 128,000
 1756-L63    8 MB   I/O memory 478 KB Digital I/O, max 128,000
 1756-L64    16 MB  I/O memory 478 KB Digital I/O, max 128,000
1756-L65    32 MB  I/O memory 478 KB Digital I/O, max 128,000
1756-L72    4 MB  I/O memory 0.98 MB Digital I/O, max 128,000
 1756-L73    8 MB  I/O memory 0.98 MB Digital I/O, max 128,000
1756-L74    16 MB  I/O memory 0.98 MB Digital I/O, max 128,000
1756-L75    32 MB  I/O memory 0.98 MB Digital I/O, max 128,000
Memory Cards
 1784-CF64   64 MB  ( 1756-L6x  )
 1784-CF128   128 MB  ( 1756-L7x  )
 1784-SD1    1 GB
 1784-SD2    2 GB
Expansion I/O
1756-IA8D 8 diagnostic inputs (4 points/group) 120V AC
1756-IA16 16 inputs (8 points/group) 120V AC
1756-IA16I 16 individually isolated inputs 120V AC
1756-IA32 32 diagnostic inputs (4 points/group)  120V AC
1756-IM16I 16 individually isolated inputs  240V AC
1756-IN16 16 inputs (8 points/group)  24V AC
1756-OA8 8 outputs (4 points/group)  120/240V AC
1756-OA8D 8 diagnostic, electronically fused outputs (4 points/group)
1756-OA8E 8 electronically fused outputs (4 points/group)  120V AC
1756-OA16 16 mechanically fused/group outputs (8 points/group)
1756-OA16I 16 individually isolated outputs
1756-ON8 8 outputs (4 points/group)
 1756-IB16ISOE    16 individually isolated, sequence   of events inputs  24/48V DC sink/source
 1756-IC16    16 inputs (8 points/group)  48V DC sink
 1756-IG16    16 inputs (8 points/group)  5V DC TTL source (Low=True)
 1756-IH16I    16 individually isolated inputs  125V DC sink/source
 1756-IH16ISOE    16 individually isolated, sequence of events inputs
 1756-IV16    16 inputs (8 points/group)   12/24V DC source
 1756-IV32    32 inputs (16 points/group)   12/24V DC source
 1756-OB8    8 outputs  12/24V DC source
 1756-OB8EI    8 electronically fused, individually isolated outputs
 1756-OB8I    8 individually isolated outputs  12/24V DC source
 1756-OB16D    16 diagnostic outputs (8 points/group)   24V DC source
 1756-OB16E    16 electronically fused outputs (8 points/group)12/24V DC source
 1756-OB16I    16 individually isolated outputs  12/24V DC sink/source
 1756-OB16IS    16 individually isolated outputs 8 scheduled outputs
 1756-OB32    32 outputs (16 points/group)  12/24V DC source
 1756-OC8    8 outputs (4 points/group)   48V DC source
 1756-OG16    16 (8 points/group)   5V DC TTL source (Low=True)
 1756-OH8I    8 outputs individually isolated  120V DC
 1756-OV16E    16 electronically fused outputs (8 points/group)   12/24V DC sink
 1756-OV32E    32 electronically fused outputs (16 points/group)  12/24V DC sink
 1756-IF6CIS    6 individually isolated inputs, current sourcing  0…21 mA
 1756-IF6I    6 individually isolated inputs  ±10.5V 0…10.5V 0…5.25V 0…21 mA
 1756-IF8    8 single-ended inputs 4 differential inputs 2 high-speed differential inputs
 1756-IF8H    8 differential voltage or current inputs, HART interface
 1756-IF16    16 single-ended inputs 8 differential or 4 differential (high speed)
 1756-OF4    4 voltage or current outputs
 1756-OF6CI    6 individually isolated outputs,   0…21 mA
 1756-OF6VI    6 individually isolated outputs,  ± 10.5V
 1756-OF8    8 voltage or current outputs   ± 10.4V   0…21 mA
 1756-OF8H    8 voltage or current outputs,  ±10.4V
   HART interface   0…20 mA    4…20 mA
Specialty I/O
1756-CFM 4 inputs (2 per channel) Configurable flow meter module 2 outputs, current sourcing  2 Flowmeter (F) inputs used for all modes
1756-HSC 2 counters, each with 3 inputs (A, B, Z for gate/reset) 4 outputs (2 points/group)
1756-PLS Left section: 2 groups of 4 outputs and 4 inputs each Center section: resolver interface and I/O control Right section: 2 groups of 4 outputs and 4 inputs each
 Communication Interface Devices
1756-EN2F EtherNet/IP communication bridge module
1756-EN2T EtherNet/IP communication bridge module
1756-EN2TR 2-port EtherNet/IP communication bridge module, with embedded switch technology
1756-EN3TR 2-port EtherNet/IP communication bridge module, with embedded switch technology
1756-ENBT EtherNet/IP communication bridge module
1756-EWEB EtherNet web server module
1756-EN2TXT ControlLogix-XT, EtherNet/IP communication bridge module
1585J-M8PBJM-x Ethernet RJ45 patchcord
1585J-M8CC-H RJ45 insulation displacement connector (IDC)
1585J-M8CC-C RJ45 crimp connector with boot, qty = 50 pieces
1585A-Jcrimp Crimp tool
9300-RADES Remote access dial-in kit 56 Kbps modem connection to devices on an Ethernet network, includes:
1756-CN2 ControlNet communication bridge module, standard media
1756-CN2R ControlNet communication bridge module, redundant media
1756-CNB ControlNet communication bridge module, standard media
1756-CNBR ControlNet communication bridge module, redundant media
1756-CN2RXT ControlLogix-XT, ControlNet communication bridge module, redundant media
1786-TPR T-tap right angle
1786-TPS T-tap straight
1786-TPYR Y-tap right angle
1786-TPYS Y-tap straight
1786-CP Programming cable to ControlNet RJ45 port
1786-RG6 ControlNet network, shield high flex cable
1756-RG6F ControlNet network, quad shield high flex coax cable
1786-XT ControlNet termination resistor
1786-RPA ControlNet modular repeater adapter
1786-RPCD ControlNet coaxial hub repeater
1786-RPFRL ControlNet fiber ring repeater, long
1786-RPFRXL ControlNet fiber ring repeater, extra long
1786-RPFS ControlNet fiber ring repeater, short
1786-RPFM ControlNet fiber ring repeater, medium
1756-DNB DeviceNet communication bridge module
1756-DHRIO Data Highway Plus/Remote I/O communication module
1756-RIO Remote I/O communication module
1756-DHRIOXT ControlLogix-XT, Data Highway Plus/Remote I/O communication module
1756-DH485 DH-485 communication bridge module
Power Supplies
1756-PA72 ControlLogix standard power supply 120V/220V AC
1756-PB72 24V DC
1756-PA75 120V/220V AC
1756-PB75 24V DC
1756-PC75 48V DC
1756-PH75 125V DC
1756-A4 ControlLogix standard chassis  Slots 4
1756-A7 Slots 7
1756-A10 Slots 10
1756-A13 Slots 13
1756-A17 Slots 17
1756-TBNH 20-position NEMA screw-clamp RTB
1756-TBSH 20-pin spring-clamp RTB with standard housing
1756-TBCH 36-pin cage-clamp RTB with standard housing
1756-TBS6H 36-pin spring-clamp RTB with standard housing

Tel: 86-510-85572185
Fax: 86-510-85884818
Copyright © 2012 Wuxi dekong Co.,Ltd . All rights reserved.
