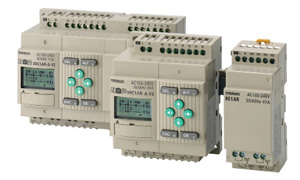

Programmable Relay
ZEN V2 Units |
|
|
|
Even Broader Applications with Increased Functionality and Higher Precision
- Increased functionality in a compact body (70 mm wide × 90 mm high).
- Easy programming is available using the LCD and operation buttons. (See note 1.)
- This single Unit easily provides relay, timer, counter, and time switch functions.
- Expansion is easy with Expansion I/O Units, allowing up to 44 I/O points. (See note 2.)
- Economy-type and Communications-type CPU Units have been added to series.
- Improved Weekly Timers (See note 1.) Increased timing accuracy with a monthly deviation of ±15 s max. Multiple-day operation and pulse output operation have been added.
- Select from two power supply options: 100 to 240 VAC or 12 to 24 VDC.
|
| |
CPU Units
Power supply voltage: 100 to 240 VAC, 12 to 24 VDC, Output: Relay, transistor output |
| |
 |
| |
 |
standard LCD type
ZEN-10C1AR-A-V2 (Relay), 220VAC Supply with LCD Display
ZEN-10C1DR-D-V2 (Relay), 24 VDC Supply with LCD Display
ZEN-10C1DT-D-V2 (Transistor), 24 VDC Supply with LCD Display
Economy Type
ZEN-10C3AR-A-V2 (Relay), 220VAC Supply with LCD Display
ZEN-10C3DR-D-V2 (Relay), 24 VDC Supply with LCD Display
Communication Type
ZEN-10C4AR-A-V2 (Relay), 220VAC Supply with LCD Display
ZEN-10C4DR-D-V2 (Relay), 24VDC Supply with LCD Display |
| |
|
 |
standard LCD type
ZEN-20C1AR-A-V2 (Relay), 220VAC Supply with LCD Display
ZEN-20C1DR-D-V2 (Relay), 24 VDC Supply with LCD Display
ZEN-20C1DT-D-V2 (Transistor), 24 VDC Supply with LCD Display
Economy Type
ZEN-20C3AR-A-V2 (Relay), 220VAC Supply with LCD Display
ZEN-20C3DR-D-V2 (Relay), 24 VDC Supply with LCD Display |
| |
|
 |
|
| These CPU Units do not have the LCD operation buttons, or calendar/clock function |
| |
| |
 |
ZEN-10C2AR-A-V2 (Relay), 220VAC Supply withoutout LCD Display
ZEN-10C2DR-D-V2 (Relay), 24 VDC Supply without LCD Display
ZEN-10C2DT-D-V2 (Transistor), 24 VDC Supply without LCD Display |
| |
|
 |
ZEN-20C2AR-A-V2 (Relay), 220VAC Supply without LCD Display
ZEN-20C2DR-D-V2 (Relay), 24 VDC Supply without LCD Display
ZEN-20C2DT-D-V2 (Transistor), 24 VDC Supply without LCD Display |
|
| |
|
|
| |
| Ordering |
| ZEN Standard LCD Type (3 Expansion Module) |
| ZEN-10C1AR-A-V2 |
ZEN CPU; 6DI (AC) / 4DO (Relay), 220VAC Supply with LCD Display |
| ZEN-10C1DR-D-V2 |
ZEN CPU; 6DI (DC) / 4DO (Relay), 24 VDC Supply with LCD Display |
| ZEN-10C1DT-D-V2 |
ZEN CPU; 6DI (DC) / 4DO (Transistor), 24 VDC Supply with LCD Display |
| ZEN-20C1AR-A-V2 |
ZEN CPU; 12DI (AC) / 8DO (Relay), 220VAC Supply with LCD Display |
| ZEN-20C1DR-D-V2 |
ZEN CPU; 12DI (DC) / 8DO (Relay), 24 VDC Supply with LCD Display |
| ZEN-20C1DT-D-V2 |
ZEN CPU; 12DI (DC) / 8DO (Transistor), 24 VDC Supply with LCD Display |
| ZEN Standard LED Type without Display (3 Expansion Module) |
| ZEN-10C2AR-A-V2 |
ZEN CPU; 6DI (AC) / 4DO (Relay), 220VAC Supply withoutout LCD Display |
| ZEN-10C2DR-D-V2 |
ZEN CPU; 6DI (DC) / 4DO (Relay), 24 VDC Supply without LCD Display |
| ZEN-10C2DT-D-V2 |
ZEN CPU; 6DI (DC) / 4DO (Transistor), 24 VDC Supply without LCD Display |
| ZEN-20C2AR-A-V2 |
ZEN CPU; 12DI (AC) / 8DO (Relay), 220VAC Supply without LCD Display |
| ZEN-20C2DR-D-V2 |
ZEN CPU; 12DI (DC) / 8DO (Relay), 24 VDC Supply without LCD Display |
| ZEN-20C2DT-D-V2 |
ZEN CPU; 12DI (DC) / 8DO (Transistor), 24 VDC Supply without LCD Display |
| ZEN Standard Economy Type (can't expansion) |
| ZEN-10C3AR-A-V2 |
ZEN CPU; 6DI (AC) / 4DO (Relay), 220VAC Supply with LCD Display |
| ZEN-10C3DR-D-V2 |
ZEN CPU; 6DI (DC) / 4DO (Relay), 24 VDC Supply with LCD Display |
| ZEN-10C3DT-D-V2 |
ZEN CPU; 6DI (DC) / 4DO (Transistor), 24 VDC Supply with LCD Display |
| ZEN-20C3AR-A-V2 |
ZEN CPU; 12DI (AC) / 8DO (Relay), 220VAC Supply with LCD Display |
| ZEN-20C3DR-D-V2 |
ZEN CPU; 12DI (DC) / 8DO (Relay), 24 VDC Supply with LCD Display |
| ZEN-20C3DT-D-V2 |
ZEN CPU; 12DI (DC) / 8DO (Transistor), 24 VDC Supply with LCD Display |
| ZEN Communication Type (can't expansion) |
| ZEN-10C4AR-A-V2 |
ZEN CPU; 6DI (AC) / 3DO (Relay), 220VAC Supply with LCD Display |
| ZEN-10C4DR-D-V2 |
ZEN CPU; 6DI (DC) / 3DO (Relay), 24VDC Supply with LCD Display |
| Digital IO Expansion Module |
| ZEN-8E1AR |
ZEN Expansions 4DI (AC) / 4DO (Relay), 220VAC Supply |
| ZEN-8E1DR |
ZEN Expansions 4DI (DC) / 4DO (Relay), 24 VDC Supply |
| ZEN-8E1DT |
ZEN Expansions 4DI (DC) / 4DO (Transistor), 24 VDC Supply |
| Power Supply |
| ZEN-PA03024 |
ZEN Power Supply Unit 220VAC / 24VDC; 30W, 1.3A |
| Accessories Port |
| ZEN-CIF01 Connecting Cable RS232; 2M. |
|

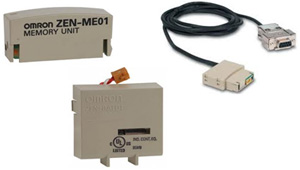

| ZEN-ME01 EEPROM Memory Cassette (For Data Security and Copying) |
|
ZEN-BAT01 Battery Unit
|
|
|
